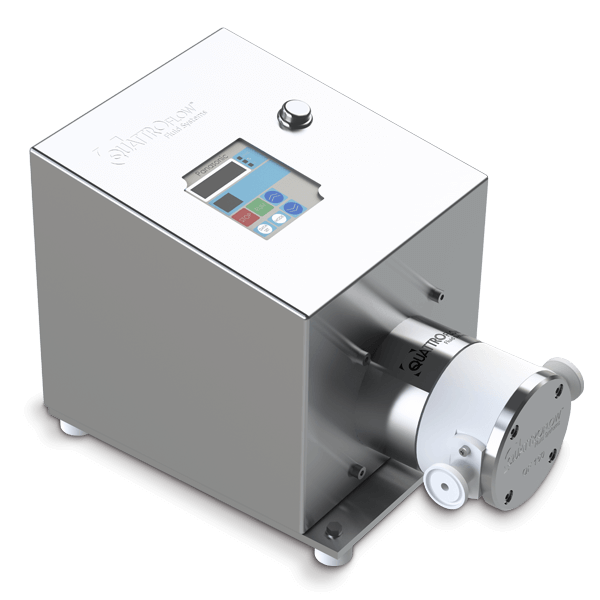

Quattroflow 150SU
    | |
QF150SU

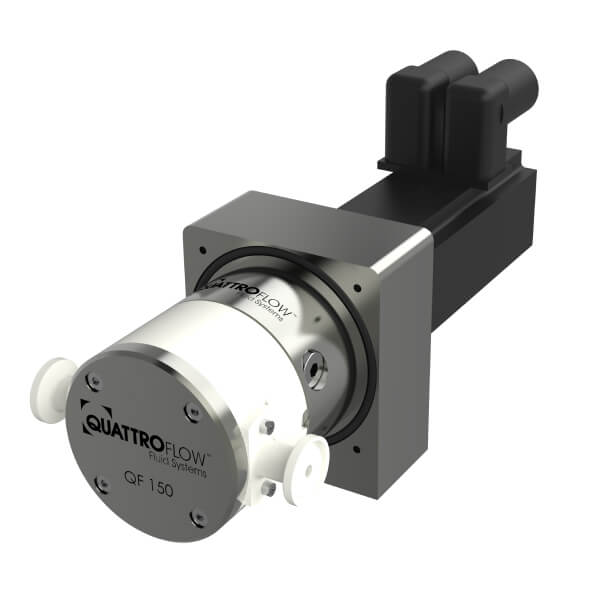

| QF150SU OEM
|
Technical Data
| QF150SU STANDARD MOTOR | QF150SU OEM | ||
|---|---|---|---|
| Flow Rate Maximum | Eccentric Shaft 5° | 180 lph (3 lpm) | 180 lph (3 lpm) |
| Flow Rate Minimum | Eccentric Shaft 5° | 1 lph (0.017 lpm) | 1 lph (0.017 lpm) |
| Pressure | Temperature of Fluid < 40°C (104°F) | 4 bar (58 psi) | 4 bar (58 psi) |
| Temperature of Fluid > 40°C (104°F) | 4 bar (58 psi) | 4 bar (58 psi) | |
| Maximum Temperature | Fluid | 60°C (140°F) | 60°C (140°F) |
| Autoclave* | 130°C (266°F) | 130°C (266°F) | |
| Suction Lift Dry at 3000 rpm | Eccentric Shaft 5° | 2 – 3 m (6.6 – 9.8 ft) | 2 – 3 m (6.6 – 9.8 ft) |
| Volume Specifications | Approximated Volume per Revolution at Free Output | 1.2 ml | 1.2 ml |
| Filling Volume Without Connectors | 15 ml | 15 ml | |
| Connection Specification (Standard) | Connectors | 1/4" TC | 1/4" TC |
| Position of Connectors | Inline | Inline | |
| Number of Flow Directions | 4 | 4 | |
| Product Wetted Materials (Standard) | Pump Chamber | PP | PP |
| Valve Plate | PP | PP | |
| Diaphragms | TPE | TPE | |
| Valves | EPDM | EPDM | |
| O-rings | EPDM | EPDM | |
| Certificates/Proofs (Optional) | Elastomer (product wetted) | USP <88> Cl. VI; FDA21CFR177; BSE/TSE Safe; USP 87/381/661 | USP <88> Cl. VI; FDA21CFR177; BSE/TSE Safe; USP 87/381/661 |
| Motor (Standard) | Rated speed | 3000 min-1 | 3000 min-1 |
| Voltage | 230 V (110 V as option) | 3 x 230V / 3 x 400V | |
| Power | 90 W | — | |
| Pump Dimension with Motor and Housing | Length | 262 mm (10.31") | 270 mm (10.63") |
| Width | 164 mm (6.46") | 114 mm (4.49") | |
| Height | 185 mm (7.28") | 130 mm (5.12") | |
| Pump Weight with Motor and Housing | 7.6 kg (16.8 lb) | 5.2 kg (11.5 lb) | |

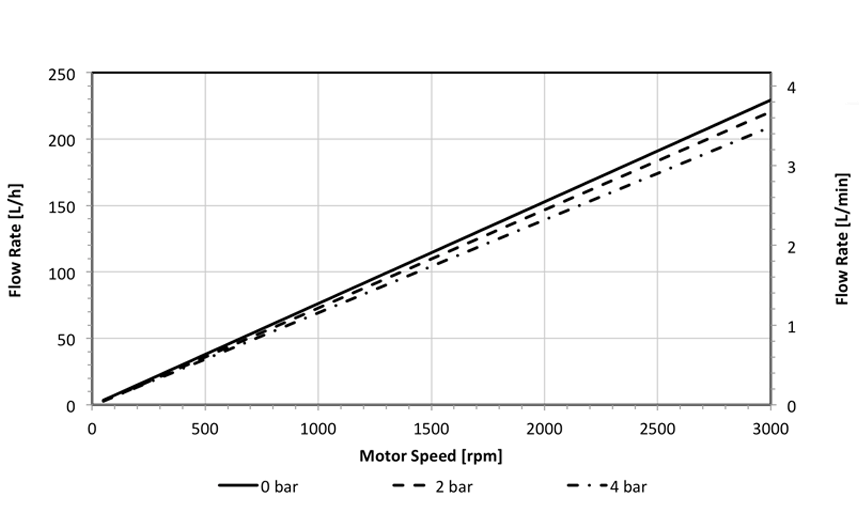

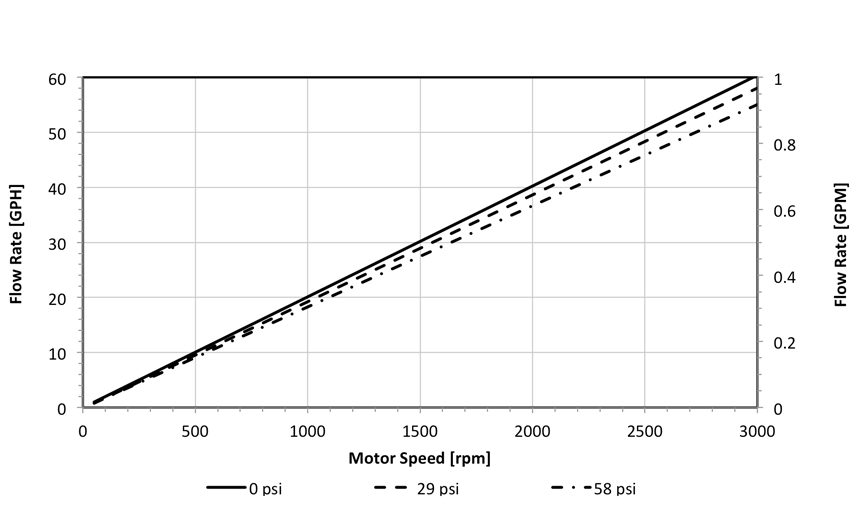

Performance
|
|
